19 Inch Wall Mount
Click here to see features

Features & Specifications:-
	Internal system base with vented roof
	Flexible front door (PERFORATED or PERSPEX)
	Side Panels
	19" server compatible panel mounting members
	20 sets of M6 caged nuts & screws
	3 pcs 13A power point channel complete socket
	High quality epoxy powder coating

Model	Size 'U'	Overall Height (mm)	Width (mm)	Depth (mm)	Power Outlet (mm)
G0440WM	4U	240	600	400	3
P/G 0650WM	6U	327	600	500	3
P/G 0950WM	9U	460	600	500	3
P/G 1250WM	12U	600	600	500	3
P/G 1550WM	15U	730	600	500	3

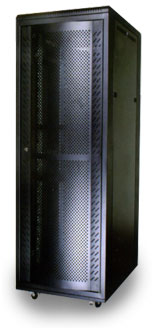

19" Equipment Rack
Click here to see features

Features & Specifications:-
	Internal system base with vented roof
	Flexible front door (PERFORATED or TEMPERED GLASS)
	Lockable PERFORATED rear swing door
	Lockable detachable quick release side panels
	19" server compatible panel mounting members
	40 sets of M6 caged nuts & screws
	Roof mount fan for suitable ventilation system
	Equipment trays
	1 set of castor wheels c/w front braking system
	Flexible cable managment system
	13A power point channel complete socket
	High quality epoxy powder coating

Model	Size 'U'	Overall Height (mm)	Width (mm)	Depth (mm)	Power Outlet (mm)
P/G 1580FS	15U	821	600	800	5
P/G 1880FS	18U	999	600	800	5
P/G 2480FS	24U	1221	600	800	5
P/G 2880FS	28U	1399	600	800	5
P/G 3380FS	33U	1621	600	800	10
P/G 3780FS	37U	1799	600	800	10
P/G 4280FS	42U	2021	600	800	10
P/G 42100FS	42U	2021	600	1000	10
